How to setup your barcode scanner

How to setup your barcode scanner

Overview

ID cards, ePasses, and barcode scanners purchased directly from Access Granted Systems are configured to scan classic passes, ePasses, and marketplace tickets.  You just need to connect the scanner to your computer by using the cord, USB wireless connection, or Bluetooth connection.  If you purchase from another store, you may need this guide to connect your barcode scanner to your ID cards or ePasses.

CLICK HERE to purchase a barcode scanner form Access Granted Systems.

Having trouble pairing your iPad via Bluetooth?

If you are using a scanner purchased form AGS and are using an iPad, see page 57 of the instruction manual to pair your scanner to your iPad.

How to connect a barcode scanner to Access Granted Systems ID cards

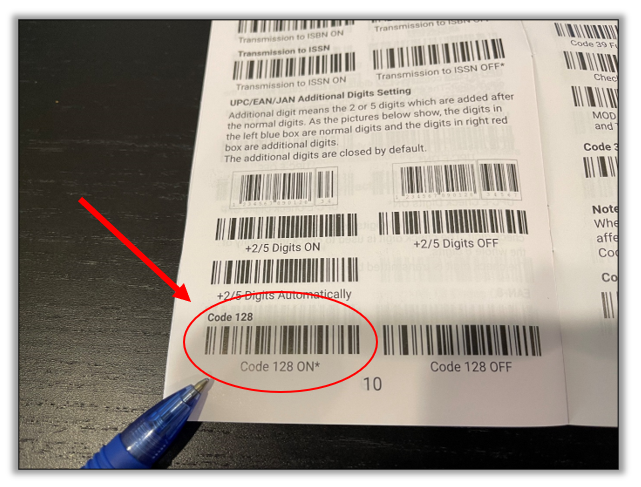

ID Cards are printed using Code 128.  Read your instruction manual for your scanner and configure it to read Code-128.  Below is a picture form the instruction manual that we sell.


How to connect a barcode scanner to Access Granted Systems ePasses

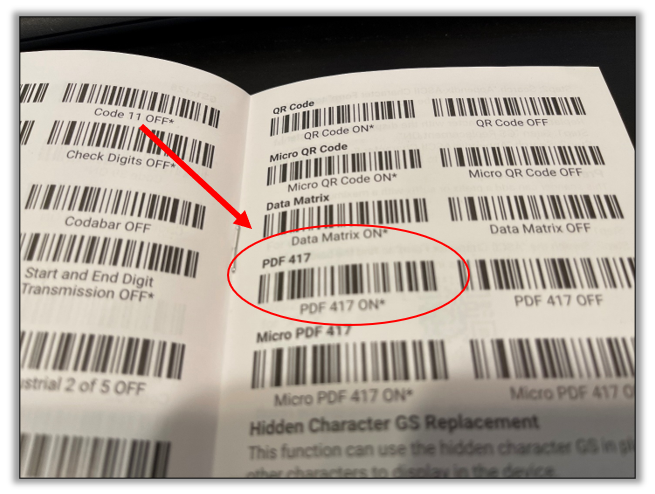

ePass barcodes use PDF417.   Read your instruction manual for your scanner and configure it to read PDF 417.  Below is a picture form the instruction manual that we sell.


How to connect a barcode scanner to read marketplace tickets.

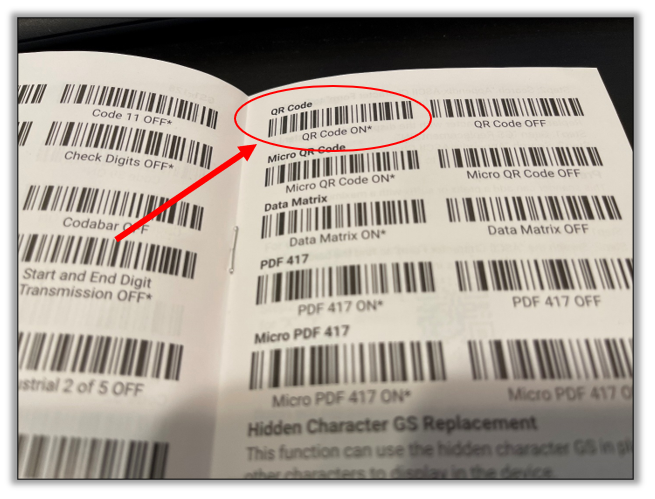

Marketplace tickets use QR codes.   Read your instruction manual for your scanner and configure it to read QR codes.  Below is a picture form the instruction manual that we sell.


Why won't my scanner read my patron's phone?

Only optical 2D barcode scanners read through glass.  Read your scanner's specifications and instruction manual to ensure it is a 2D scanner.

CLICK HERE to purchase a 2D barcode scanner from Access Granted Systems.
